Thermally Broken Single Out-Swing Door
Style: TB 5050

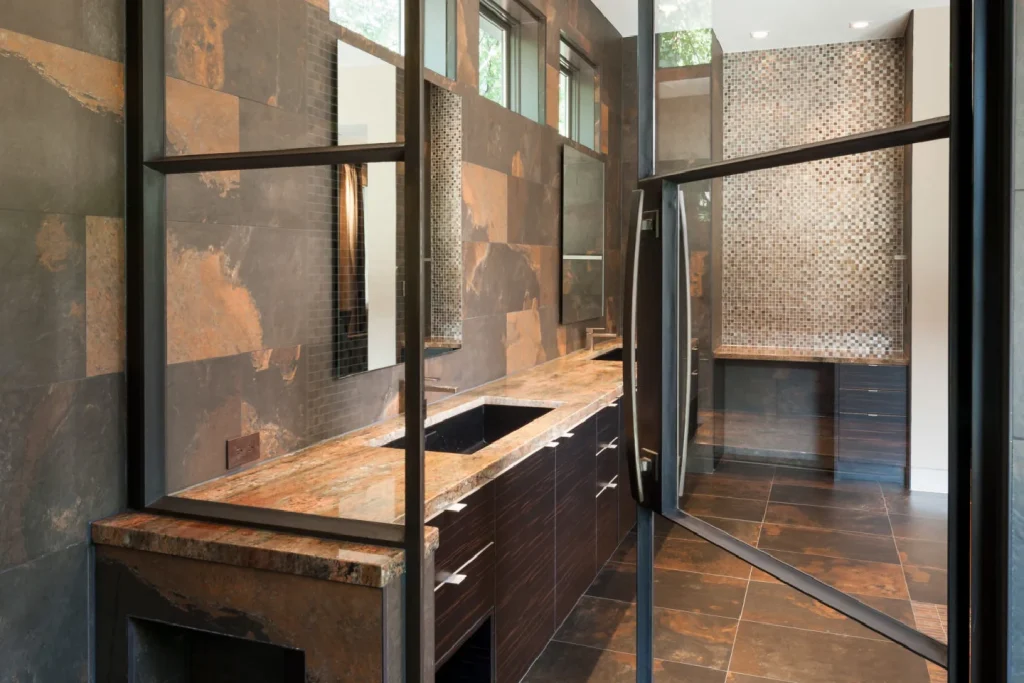

Escape from the world in your bathroom or sauna richly enclosed with Portella steel doors. Spacious and airy with narrow stainless steel, they keep the space open and illuminated with large-expanse, true divided lites of glass rather than simulated divided lites commonly used by others. Portella’s true divided lites feature two pieces of glass, as opposed to one, which are separated by a muntin that is the same depth as the window/door unit, ensuring that fabulous authentic look you’re looking for. And, since each door is made of stainless steel, you needn’t worry about rust. Available in painted pewter, gun metal, chestnut, dark bronze, black or custom finishes. *Note: We do not warranty shower / sauna doors

Diagram of Portella Thermally Broken Single Out-Swing Door

Thermally Broken Single Out-Swing Door

Style: TB 5050
  • NFRC rated Thermally Broken
  • Stainless Steel (Carbon Steel available option)
  • Precision extruded slender profiles
  • High density polyurethane thermal barrier
  • Double glazed (single and triple available)
  • Glass: Cardinal 366/Argon/Clear tempered (other glass options available)
  • Glazing Orientation: Exterior Wet Glazed
  • Simulated Lite construction with 1 ¼” muntin bars
  • Hinges: Adjustable steel post in barrel w ball bearing
  • Door Lock: Hoppe multi point with Dallas trim. Rocky Mountain trim available as an upgrade
  • Sill: Custom brass height varies per floor requirements
  • Available in standard and custom paint options: grey, pewter, gun metal, chestnut brown, dark bronze and black
  • Continuous steel mounting flanges with orientation options
Download Specs
Thermally Broken Single Out-Swing Door


  • Pewter
  • Gun Metal
  • Grey
  • Brown
  • Dark Bronze
  • Black
*Patina finishes available upon request.


  • Rocky Mountain

  • Custom Pull Handle
*Others by approval.

Modern house with windows by Portella.

Request a Quote

Contact Us Today to Request a Quote and Get Your Project Moving.

Modern house with windows by Portella.

How to Order

All Portella products are custom made to your exact specifications. Contact us today to be connected to your personal Project Manager. We’ll need overall sizes and details of what you’re looking for and your location to determine which product will work best in your climate and meet your state’s regulations. Click here for details.

Request DWG

Contact Us Today to Request a DWG.
