Thermally Broken Single Door with Sidelite Out-Swing

Style: TB 6300

Hot-formed steel, thermally broken single door with sidelite out-swing from Portella are distinctive for their narrow sight lines and exceptional strength that make them perfect for today’s contemporary architecture. Influenced by European aesthetic design, their thin, solid steel frames and stiles create a distinctively narrow sight line that lends a timeless, minimalist feel. Select from a variety of finishes including pewter, bronze, black or a custom finish created just for your project.

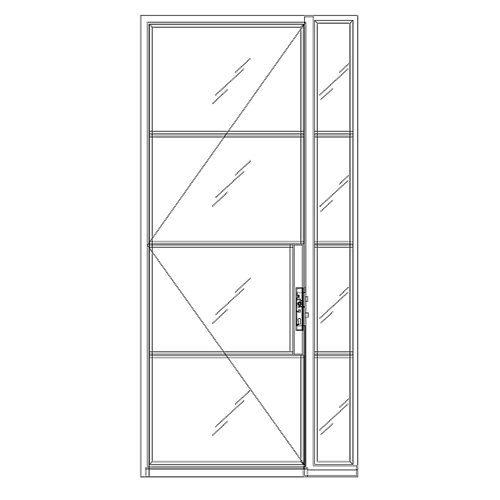

Diagram of Portella Thermally Broken Single Door with Sidelite Out-Swing

Thermally Broken Single Door with Sidelite Out-Swing

  • NFRC rated Thermally Broken
  • Carbon Steel (Stainless Steel, CorTen, and Bronze available)
  • Precision cold formed profiles with “stepped leg” design
  • High density cast in polyurethane thermal barrier
  • Double glazed (single and triple available)
  • Glass: Cardinal 366/Argon/Clear tempered (other glass options available)
  • Glazing Orientation: Exterior Wet Glazed
  • True divided lite construction with 1 ¼” muntin bars
  • Hinges: Adjustable steel post in barrel w ball bearing
  • Door Lock: Rocky Mountain trim with Accurate mortise lock. 1 ¾”backset.
  • Sill: Custom brass height varies per floor requirement
  • Available in standard and custom paint options: grey, pewter, gun metal, chestnut brown, dark bronze and black
  • Continuous steel mounting flanges with orientation options

Available Finishes

*Patina finishes available upon request.

  • Black
  • Dark Bronze
  • Grey
  • Gun Metal
  • Pewter
  • Chestnut Brown

Available Hardware

*Others by approval.


  • Hoppe

  • Rocky Mountain
Warranty

Portella Custom Doors, LLC., warrants its steel doors, windows and glass, to be free from defect in material and workmanship (excluding finish) and will repair or replace any defective product or parts at Portella Custom Doors’ sole discretion. Portella also warrants factory-applied product finishes. Each of our product lines carry exceptional limited warranties as indicated:

Artisan Series products carry a limited 10-year product warranty, a 10-year limited warranty on glass and a 5-year warranty on finishes.Classic Series products carry a limited 10- year product warranty, a 10-year limited warranty on glass, a 5-year limited warranty on finish. Storefront Exterior Series products carry a limited 5-year product warranty, a 10-year limited warranty on glass, and a 5-year limited warranty on finish.Storefront Interior Series products carry a limited 5-year product warranty, a 10-year limited warranty on glass, and a 5-year warranty on finish.Hardware see manufacturers warranty

Download Portella Warranty
