Thermally Broken Pivot Door

Style: TB 9000
commercial office doors with windows houston

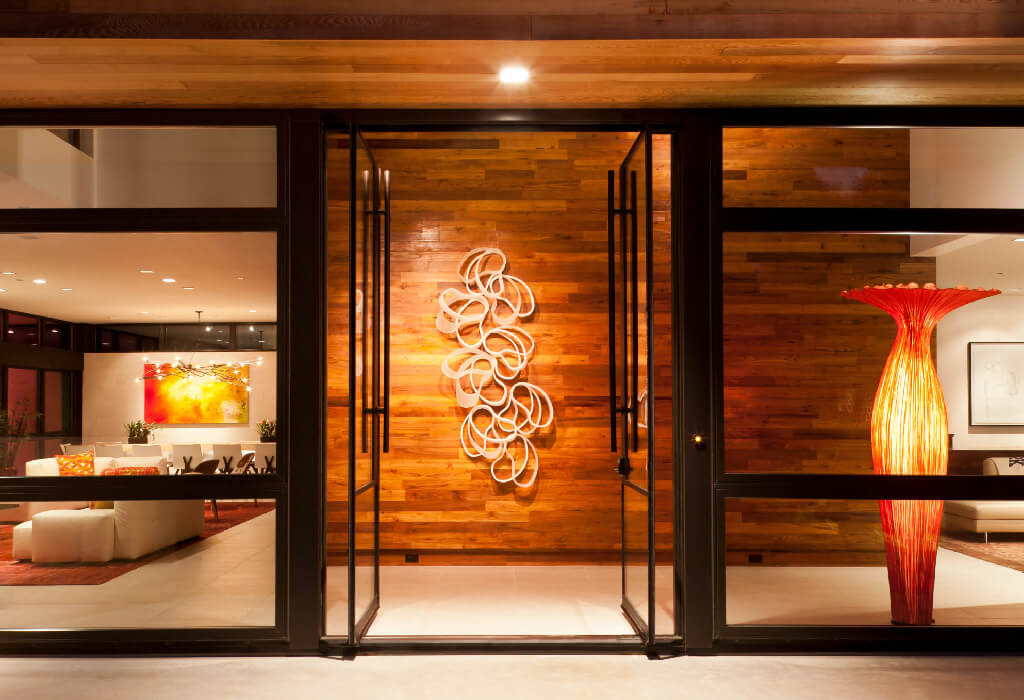

Portella presents the thermally broken pivot door. Our unique minimalist door operates on two metal pivots above and below the panel to create a unique visual and functional experience. Its thin, solid steel frame with elegant handles is deceptively strong yet can be opened with just a touch. Our pivot doors create clean, beautiful, smooth frames that blur the lines between inside and outside space. Choose from a variety of finishes including pewter, gun metal, chestnut, dark bronze, black or a custom finish of your choosing.

Diagram of Portella Thermally Broken Pivot Door
thermally-broken-pivot-door

Thermally Broken Pivot Door

  • NFRC rated Thermally Broken
  • Carbon Steel (Stainless Steel, CorTen, and Bronze available)
  • Precision cold formed profiles with “stepped leg” design
  • High density cast in polyurethane thermal barrier
  • Double glazed (single and triple available)
  • Glass: Cardinal 366/Argon/Clear tempered (other glass options available)
  • Glazing Orientation: Exterior Wet Glazed
  • True divided lite construction with 1 ¼” muntin bars
  • Hinges: Heavy Duty pivot rated at 1000 lbs. With or without closure and hold open option
  • Door Lock: Rocky Mountain trim with Accurate mortise lock. 1 ¾”backset.
  • Sill: Custom brass height varies per floor requirements
  • Available in standard and custom paint options: grey, pewter, gun metal, chestnut brown, dark bronze and black
  • Continuous steel mounting flanges with orientation options

Available Finishes

*Patina finishes available upon request.

  • Pewter
  • Gun Metal
  • Grey
  • Brown
  • Dark Bronze
  • Black

Available Hardware

*Others by approval.


  • Rocky Mountain

  • Hoppe
Warranty

Portella Custom Doors, LLC., warrants its steel doors, windows and glass, to be free from defect in material and workmanship (excluding finish) and will repair or replace any defective product or parts at Portella Custom Doors’ sole discretion. Portella also warrants factory-applied product finishes. Each of our product lines carry exceptional limited warranties as indicated:

Artisan Series products have a limited 20-year material warranty, a 10-year limited warranty on glass, and a 5-year warranty on finishes (Specialty Glass, Hardware or Finishes Manufacturer warranty applies).

Classic Series products carry a limited 10- year material warranty, a 10-year limited warranty on glass, a 5-year limited warranty on finish. (Specialty Glass, Hardware, or Finishes Manufacturer warranty applies).

Storefront Exterior Series products carry a limited 5-year material warranty, a 10-year limited warranty on glass, and a 5-year limited warranty on finish. (Specialty Glass, Hardware, or Finishes Manufacturer warranty applies).

Hardware see manufacturers warranty
