Thermally Broken Out-Swing Door with Fixed Sidelite

Style: TB 5250

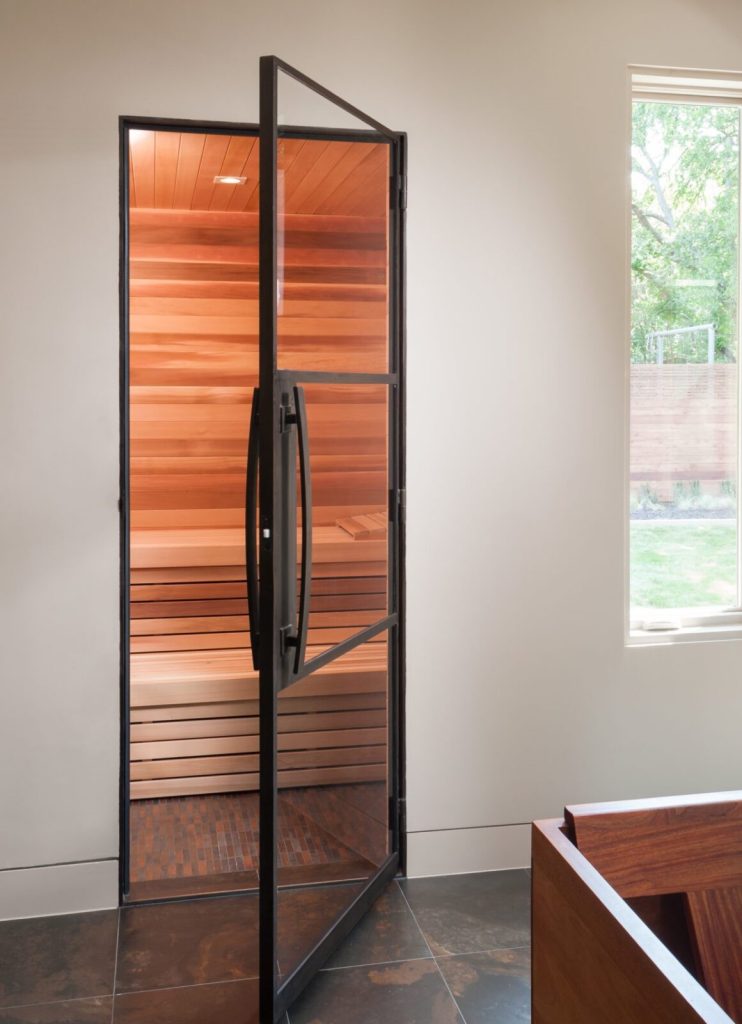

Escape from the world in your bathroom or sauna richly enclosed with Portella’s thermally broken out-swing door with fixed sidelite. Spacious and airy with narrow stainless steel, they keep the space open and illuminated with large-expanse, true divided lites of glass rather than simulated divided lites commonly used by others. Portella’s true divided lites feature two pieces of glass, as opposed to one, which are separated by a muntin that is the same depth as the window/door unit, ensuring that fabulous authentic look you’re looking for. And, since each door is made of stainless steel, you needn’t worry about rust. Available in painted pewter, gun metal, chestnut, dark bronze, black or custom finishes. *Note: We do not warranty shower / sauna doors

Diagram of Portella Thermally Broken Out-Swing Door with Fixed Sidelite
out-swing-door-with-fixed-sidelite

Thermally Broken Out-Swing Door with Fixed Sidelite

  • NFRC rated Thermally Broken
  • Stainless Steel (Carbon Steel available option)
  • Precision extruded slender profiles
  • High density polyurethane thermal barrier
  • Double glazed (single and triple available)
  • Glass: Cardinal 366/Argon/Clear tempered (other glass options available)
  • Glazing Orientation: Exterior Wet Glazed
  • Simulated Lite construction with 1 ¼” muntin bars
  • Hinges: Adjustable steel post in barrel w ball bearing
  • Door Lock: Hoppe multi point with Dallas trim. Rocky Mountain trim available as an upgrade
  • Sill: Custom brass height varies per floor requirements
  • Available in standard and custom paint options: grey, pewter, gun metal, chestnut brown, dark bronze and black
  • Continuous steel mounting flanges with orientation options

Available Finishes

*Patina finishes available upon request.

  • Pewter
  • Gun Metal
  • Grey
  • Brown
  • Dark Bronze
  • Black

Available Hardware

*Others by approval.


  • Rocky Mountain

  • Custom Pull Handle
Warranty

Portella Custom Doors, LLC., warrants its steel doors, windows and glass, to be free from defect in material and workmanship (excluding finish) and will repair or replace any defective product or parts at Portella Custom Doors’ sole discretion. Portella also warrants factory-applied product finishes. Each of our product lines carry exceptional limited warranties as indicated:

Artisan Series products have a limited 20-year material warranty, a 10-year limited warranty on glass, and a 5-year warranty on finishes (Specialty Glass, Hardware or Finishes Manufacturer warranty applies).

Classic Series products carry a limited 10- year material warranty, a 10-year limited warranty on glass, a 5-year limited warranty on finish. (Specialty Glass, Hardware, or Finishes Manufacturer warranty applies).

Storefront Exterior Series products carry a limited 5-year material warranty, a 10-year limited warranty on glass, and a 5-year limited warranty on finish. (Specialty Glass, Hardware, or Finishes Manufacturer warranty applies).

Hardware see manufacturers warranty
