Storefront Exterior Casement Window

Style: SFE 2000

One of the most popular window styles in modern architecture, casement windows from Portella are perfectly designed for today’s tastes. With narrow mullions, they are hinged like doors on one side, so they open with a push and stay open with beautiful stay bars and latches to bring fresh air inside. Portella casement windows are sealed all the way around, keeping air from leaking and reducing noise. And they’re versatile, so they can be side-hung, top-hung or bottom-hung—or hung in combination, so that they can open from the left, the right or in the middle and control the direction of the incoming breeze.

Diagram of Portella Storefront Exterior Casement Window

Storefront Exterior Casement Window

  • Carbon Steel
  • Double glazed (single and triple available)
  • Glass: Cardinal 366 over clear tempered
  • Spacer: Dark Bronze
  • Glass Thickness 7/8” overall
  • Glazing Orientation: Exterior
  • True divided lite construction with 1 ¼” muntin bars
  • Hinges: Adjustable steel post in barrel w ball bearing
  • Window Lock: Latch sash lock
  • Window Operation: Stay bar
  • Available in standard and custom paint options: grey, pewter, gun metal, chestnut brown, dark bronze and black
  • Continuous steel mounting flanges with orientation options
  • Minimum size 12” width 12” height
  • Maximum size 36” w x 96” height

Available Finishes

*Patina finishes available upon request.

  • Grey
  • Pewter
  • Gun Metal
  • Chestnut Brown
  • Dark Bronze
  • Black

Available Hardware

*Others by approval.

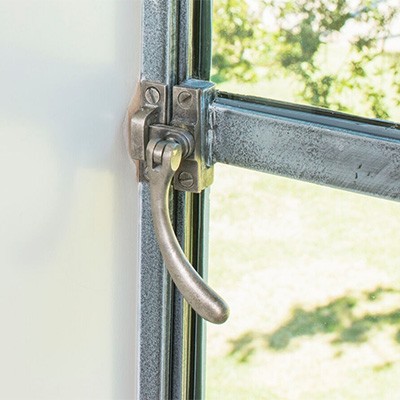

  • Window Latch

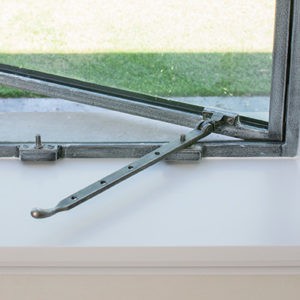

  • Stay Bar
Warranty

Portella Custom Doors, LLC., warrants its steel doors, windows and glass, to be free from defect in material and workmanship (excluding finish) and will repair or replace any defective product or parts at Portella Custom Doors’ sole discretion. Portella also warrants factory-applied product finishes. Each of our product lines carry exceptional limited warranties as indicated:

Artisan Series products carry a limited 10-year product warranty, a 10-year limited warranty on glass and a 5-year warranty on finishes.Classic Series products carry a limited 10- year product warranty, a 10-year limited warranty on glass, a 5-year limited warranty on finish. Storefront Exterior Series products carry a limited 5-year product warranty, a 10-year limited warranty on glass, and a 5-year limited warranty on finish.Storefront Interior Series products carry a limited 5-year product warranty, a 10-year limited warranty on glass, and a 5-year warranty on finish.Hardware see manufacturers warranty
