Awning with Fixed Over Operable Window
Style: C 4100

Bring the outdoors inside—even during a light rain. Portella awning windows are hinged at the top so that you can push out the sash and ventilate hot air while keeping drizzling weather outside. Perfect for a clerestory to keep light in and allow hot air to escape. Made of solid steel, our awning windows can be automated or manually operated by a crank and are similar to the construction of our hopper window.

Awning with Fixed Over Operable Window


Style: C 4100
  • Carbon Steel (available in Stainless Steel option)
  • Double glazed (single and triple available)
  • Glass: Cardinal 366 over clear tempered
  • Spacer: Dark Bronze
  • Glass Thickness 5/8” overall
  • Glazing Orientation: Exterior Wet Glazed
  • True divided lite construction with 1 ¼” muntin bars
  • Hinges: Adjustable steel post in barrel w ball bearing
  • Window Lock: Latch sash lock
  • Window Operation: Stay bar or Roto crank
  • Available in standard and custom paint options: grey, pewter, gun metal, chestnut brown, dark bronze and black
  • Continuous steel mounting flanges with orientation options
  • Minimum size 24” width 12” height + transom
  • Maximum size 72” w x 96” height + transom
Download Specs
Awning with Fixed Over Operable Window

Finishes

  • Pewter
  • Gun Metal
  • Grey
  • Brown
  • Dark Bronze
  • Black
*Patina finishes available upon request.


Hardware

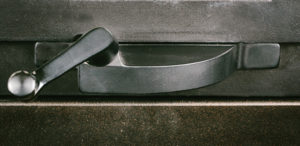

  • Roto Operator
*Others by approval.


Request a Quote

Contact Us Today to Request a Quote and Get Your Project Moving.

How to Order

All Portella products are custom made to your exact specifications. Contact us today to be connected to your personal Project Manager. We’ll need overall sizes and details of what you’re looking for and your location to determine which product will work best in your climate and meet your state’s regulations. Click here for details.

Request DWG

Contact Us Today to Request a DWG.
